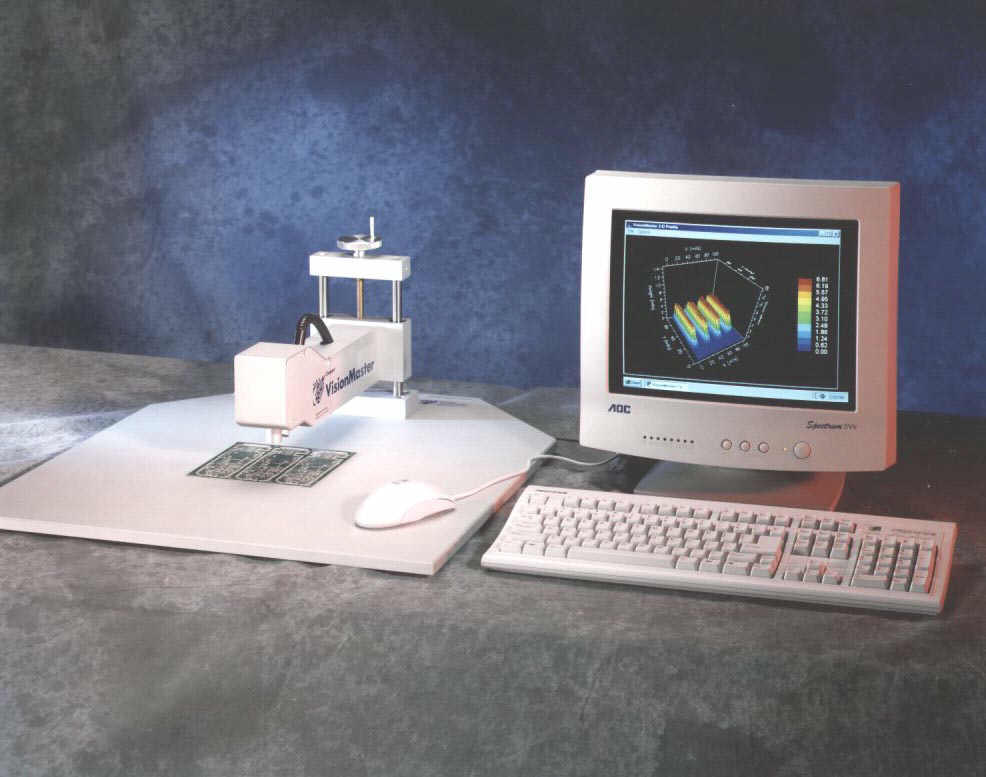

| VisionMaster is a sophisticated 3-dimensional solder paste measurement system coupled with an intuitive Windows® user interface, and packaged in a rugged, bench-top system designed for the electronics production floor. With only a few minutes training, an operator can perform accurate 3D measurements of solder paste pads, BGA's and many other PCB features. VisionMaster's completely automatic solder paste measurement process eliminates operator errors and offers excellent measurement repeatability. |
 |
Today's contract manufacturers are facing ever changing board designs, along with smaller component sizes. This places a greater emphasis on the solder paste printing process, and requires the engineer to have a control process in place. The ease, as well as the superb accuracy and repeatability, of the VisionMaster solder paste inspection system makes it a perfect fit for the company with either one or multiple lines.
System Features:
- Fully automated solder paste height/volume measurements
- Color 3D Profiles of Measured Features
- Windows 98/XP User Interface
- One-Year, End-User Warranty with Technical Support
|
System Includes:
- VisionMaster 3D Camera Assembly
- 2.5+
GHz CPU and SVGA Monitor
Large Work Surface
NIST Traceable Standard
Hardware/Software Reference and Online Help
|
To view PDF click here
To View PDF in Japanese, click here
